Point-Of-Use (POU) System

Point-Of-Use (POU) Sampling System
Point Of Use (POU) Sampling System
Hydropure Transforming Water

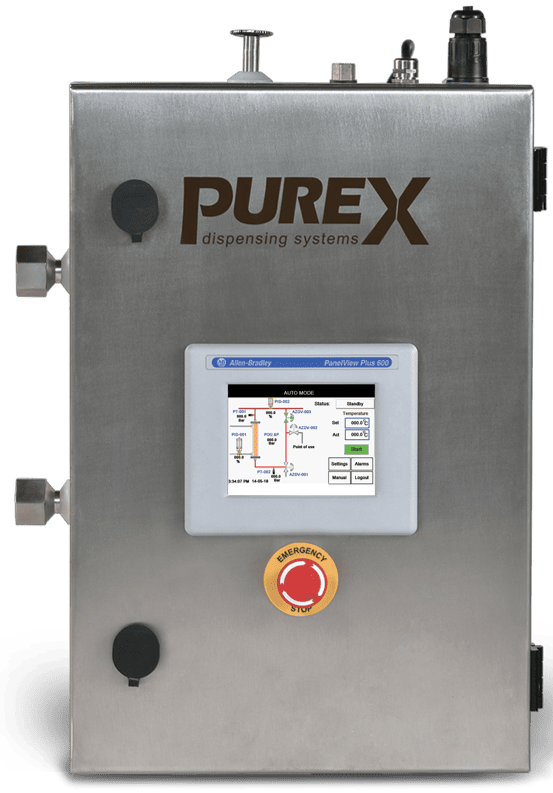

Exergy Point-Of-Use systems dispense instant, temperature controlled WFI or PW, and are designed to meet the high quality requirements and hygienic standards of the pharmaceutical industry. When not in use, a continuous flow of hot water (from the main loop) maintains sanitization. Exergy offers standard models using our compact, high performance heat exchangers for the most demanding conditions. Many features and options can be customized.

Benefits:

  • Instant cold or hot WFI or PW availability at POU
  • Continuous flow of hot water keeps it sanitized at all times
  • Automated or manual operation
  • PLC with touch screen HMI with many operating modes
  • Fully drainable on product side, with no dead legs
  • Easy to install, operate and maintain
  • CIP and SIP capable

Design Features:

  • Enclosed locking cabinet
  • Sanitary double tube sheet heat exchanger eliminates risk of cross contamination between product and working fluid
  • All product contact surfaces are passivated, less than 20 Ra and electropolish available
  • 316L stainless steel construction
  • Full quality documentation provided
  • ASME BPE Compliant

Typical Applications:

  • Cool WFI/PW from 80-85°C to 20-40°C
  • Water For Injection (WFI) systems
  • Purified Water (PW) systems

Partial Client List

Company
Location
Capacity (GPM)
Qty
Astra Zeneca
Sodertaljie, Sweden
3
4
Bayer Healthcare
Kansas, USA
5
2
Emcure Pharmaceuticals
Pune, India
1 – 7
9
Emergent BioSolutions
Maryland, USA
7 & 9
7
Fresenius-Kabi
New York, USA
10
1
Greer Laboratories
North Carolina, USA
15
1
Intas Biopharmaceuticals
Gujarat, India
9
2
Johnson & Johnson Neutrogena
California, USA
5
7
Nanotherapeutics
Florida, USA
5
10
Novo Nordisk
Missouri, USA
5 & 10
3
Omega Laboratories
Montreal, Canada
1 & 5
4
Patheon
North Carolina, USA
3
3
Pearl Therapeutics
California, USA
3
1
Perrigo
Israel
6
1
Regeneron Pharmaceuticals
New York, USA
2 (Heater)
1
Reliance Life Sciences
Maharashtra, India
4
2
Shiseido America
New Jersey, USA
5, 8 & 15
7
Sigma-Aldrich
Missouri, USA
5 (Heater)
1
Sun Pharma
Goregaon, India
1 – 8
17
TEVA
Israel
2
3
Texas A&M (TAMUS)
Texas, USA
3, 5 & 10
3
WuXi AppTec
Pennsylvania, USA
2 & 10
9
